Parts for Frame: HN5-2 (HN5-1)

Stick Stick Type Type Length (ft) Length (in)
T2 Top Chord Plate 12.13 ft 145.56 in
T3 Top Chord Plate 5.27 ft 63.24 in
B1 Bottom Chord Plate 1.85 ft 22.2 in
W9 Web Stud 1.39 ft 16.68 in
W8 Web Stud 1.19 ft 14.28 in
W5 Web Stud 1.11 ft 13.32 in
W7 Web Stud 0.80 ft 9.6 in
W6 Web Stud 0.71 ft 8.52 in
W4 Web Stud 0.54 ft 6.48 in

50

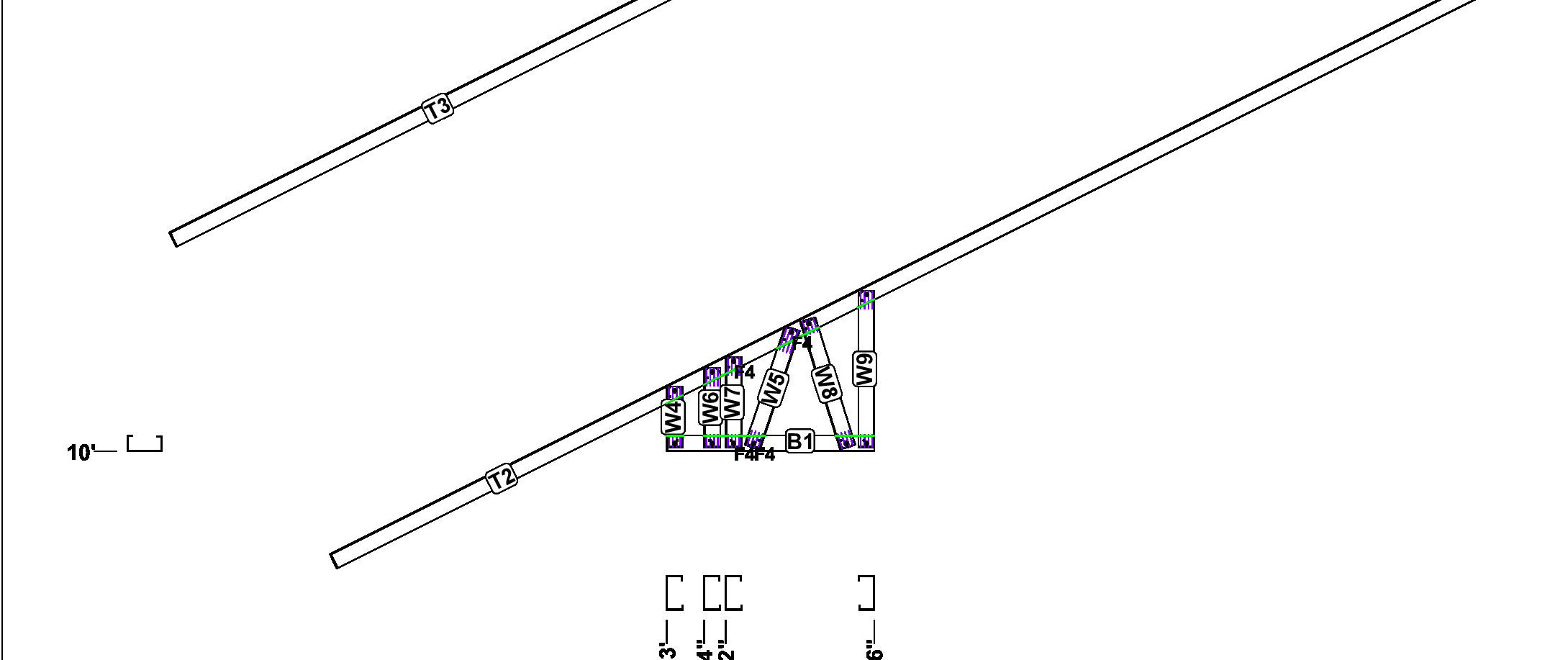

Truss Drawing for HN5-2 (HN5-1)
Trusses - HN5-2 (HN5-1)
