Parts for Frame: HN2-1

Stick Stick Type Type Length (ft) Length (in)
T2 Top Chord Plate 5.35 ft 64.2 in
T3 Top Chord Plate 5.27 ft 63.24 in
B1 Bottom Chord Plate 1.85 ft 22.2 in
W8 Web Stud 1.39 ft 16.68 in
W7 Web Stud 1.24 ft 14.88 in
W6 Web Stud 0.80 ft 9.6 in
W5 Web Stud 0.71 ft 8.52 in
W4 Web Stud 0.54 ft 6.48 in

37

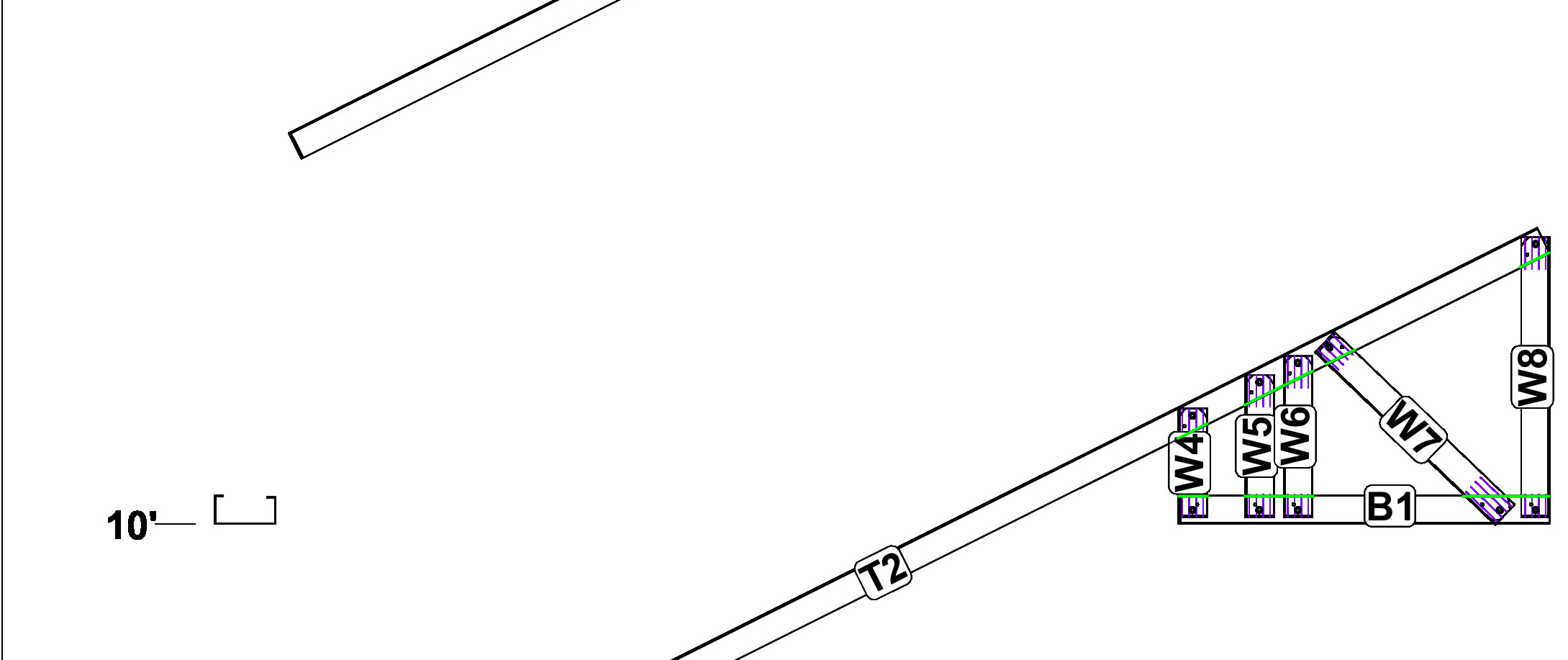

Truss Drawing for HN2-1
